Swytch Order Portal: How to Complete My AIR/MAX Order

Thank you for your Swytch order! We can't wait for you to start on your Swytch journey.

Now you have placed your pre-order we've begun manufacturing your 'base' kit, this includes your Power Pack, connector, motor and pedal assist system. We currently have all the information we need from you to get on with that process.

In the Order Portal stage, we will request some more information from you, including things such as your bike's wheel size, your delivery address and any optional extras you would like to add to your order.



It's important to go all the way through to the end of the order portal to ensure your order is completed.



Step 1: Delivery Details

Step 2: Your Kit

Step 3: Extras

Step 4: Confirmation

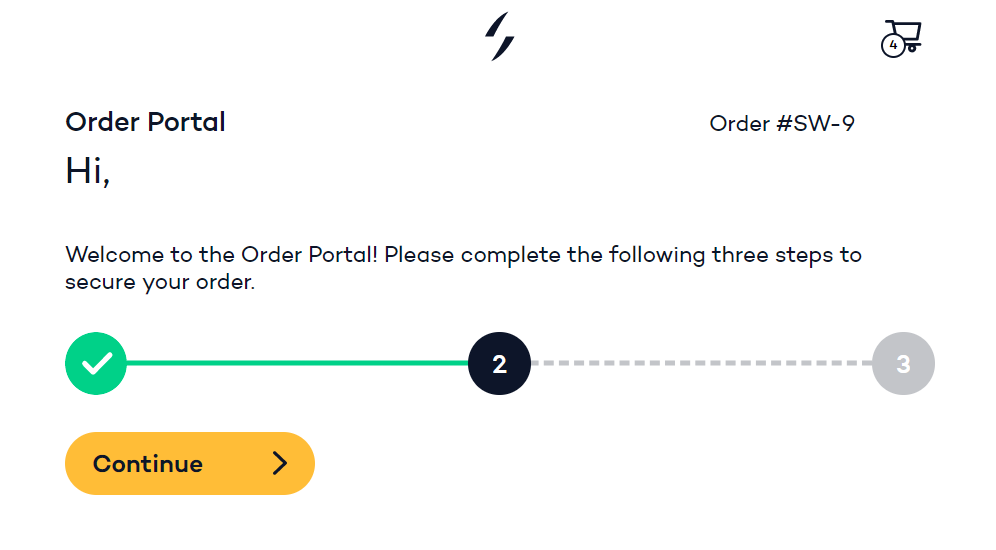

First, find your order portal invite email - it should look something like this:




Click the orange button to begin!






🔘 Step 1: Delivery Details

Enter your chosen delivery address where you want your kit delivered. If you can't find your country, please first check that the currency you used to pay is the correct one:

Currency Delivery to
£ UK, Channel Islands

$

USA, Canada, Australia, New Zealand & Rest of World
Europe

Please contact us if your currency is incorrect or you can't find your country.

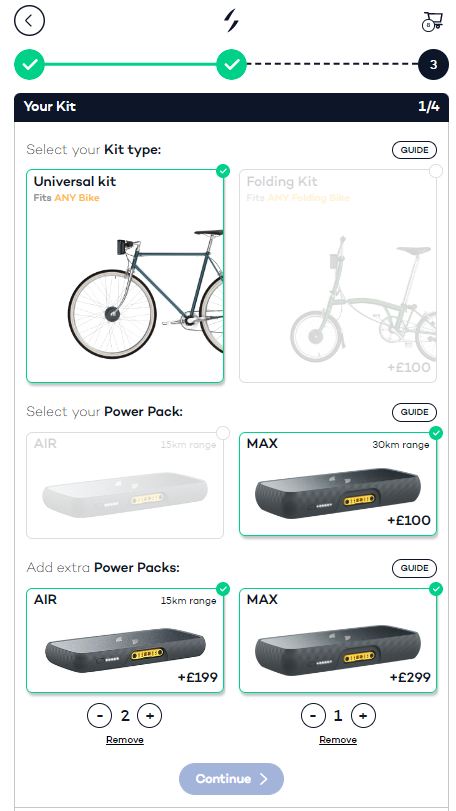

➕ Step 2: Your Kit

It's time to select which kit type you need.

This is your opportunity to upgrade your order to a MAX Power Pack, opt for a black wheel or for the narrow forks kit. You can also add additional Power Packs to your order to extend your range.


Universal vs Folding Kit

Read the full article

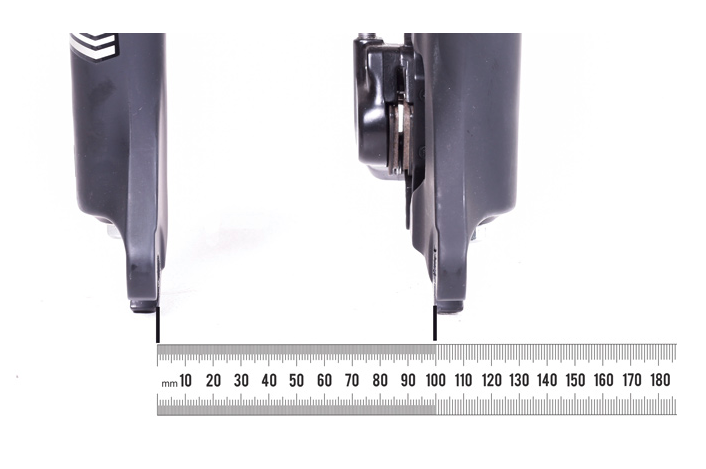

The Swytch Kit works on any bike as long as it doesn't have thru-axles or hub, roller or coaster brakes. To confirm whether you require the Universal or Folding kit you will need to measure the front fork width as shown below. If your fork width (measured at the lowest end) is around 100mm, then please select our Universal kit, but if it's narrower (74-80mm) you will need our Brompton kit.

Our Folding kit is designed for the narrow Brompton forks, which are 74mm wide. This specialised motor is also suitable for other bikes with narrow forks such as a Dahon (80mm).

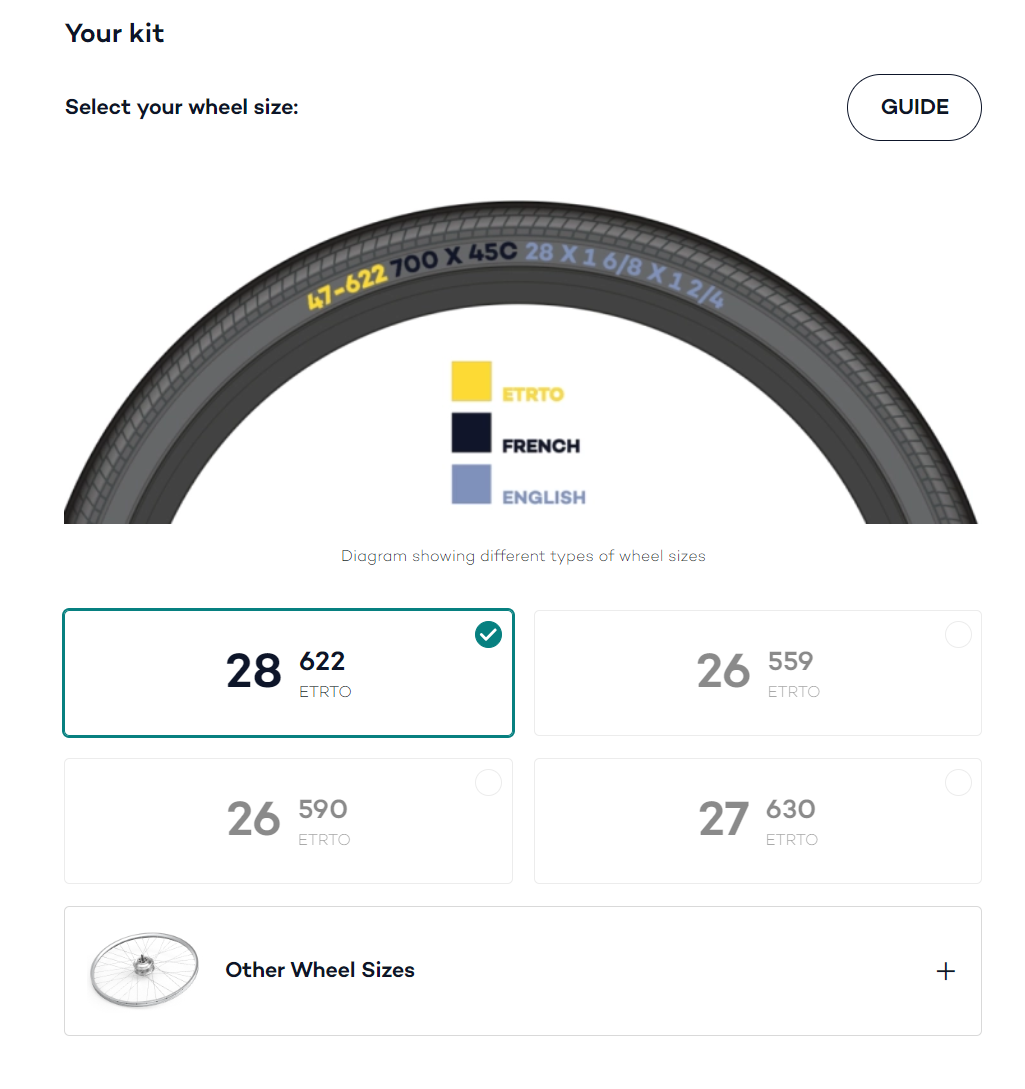

Wheel Size

Usually, you'll be able to find this written on your bike tyre, in the ETRTO, English or French format.

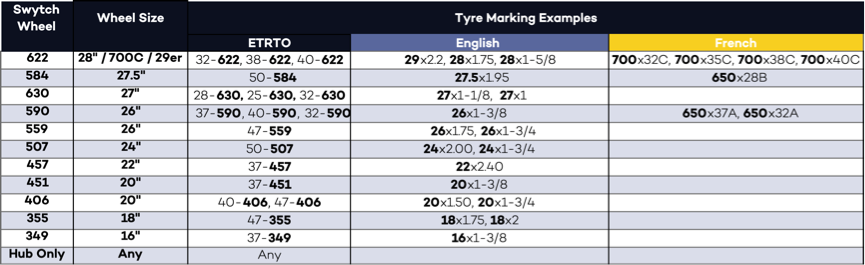

Your wheel size should match one of the markings on the table below. To find out what Swytch Wheel size you need you will need to look for the three-digit number, or if there isn't one, the larger of the two-digit numbers (bold on the table below).


Swytch motor wheels can take any width of tyres from 1.1-2.35 inches (28-60mm) - this corresponds to the smaller number written on your tyre. If the width is outside this range you will need to locate a different tyre to fit our kit or opt for our hub-only kit. If you still can't find which wheel size you need you can measure it yourself, or contact our customer service team.

Axle Size

You will need to measure the size of your fork dropout to make sure you select the correct Swytch wheel axle size. Most standard bikes have a 10mm axle, while bikes with a quick-release wheel tend to be 9mm.



Please note - if you are unsure, we recommend selecting the 10mm option. It's always better to select the larger option (we can replace it if needed) rather than insert a smaller axle into a 10mm dropout, which in very occasional circumstances can be dangerous.

Watch our video and check out our support page for more information.

Plug Type

Checking your plug type couldn’t be simpler. Simply go and check your outlet to see which one it corresponds to from our options displayed. Or just select the region you live in.

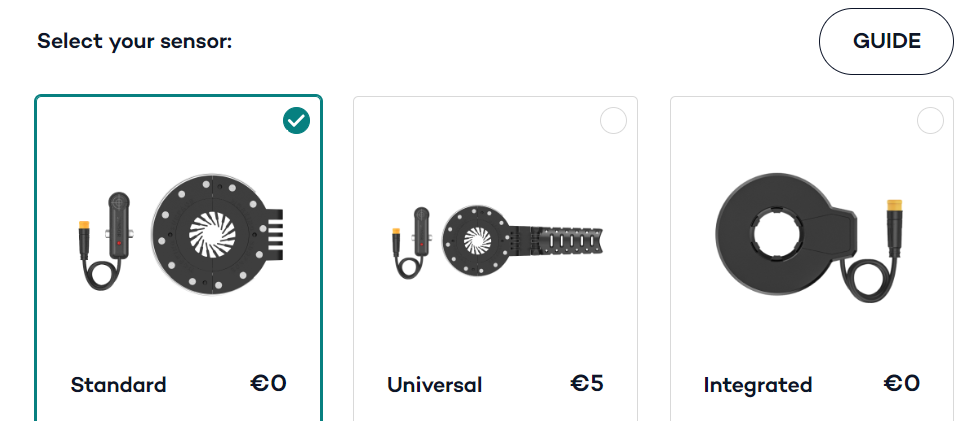

PAS Options



You will need to select a PAS for your bike. There are three to choose from.

1. Standard PAS

Most customers will need the PAS disc which attaches to your crank arm. It comes in two parts - the sensor and the disc. It fits in the gap between the bottom bracket and the crank arm.

2. Universal PAS

The Universal PAS system is perfect if you have less space around your crank arm or a more complicated setup. It is attached to the crank arm so that the disc can be set back from the frame allowing more space to fit the PAS system.

3. Integrated PAS

This integrated PAS only fits a specific set of bike models, you need 22 splines on your bottom bracket or a Shimano fitting



Addons

You can add a range of accessories and add-ons to your order such as displays, throttles, brake sensors and adaptors to allow you to mount the Power Pack in different positions around your bike. We recommend adding the torque arm if you have a bike with old forks (30+ years), carbon forks, or narrow forks such as the Brompton.

You can find out about the various accessories we offer by searching our Help Centre.



🚢 Step 3: Extras

Here you can find all the extras we have on offer. Choose to half your charging time with our fast charger, or grab an extra charger to leave at work. You can also find our USD chargeable rear light, 20-piece toolkit and our Swytch branded t-shirt!

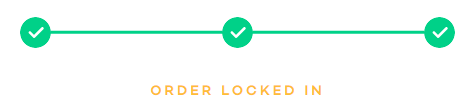

🔒 Step 4: Confirm Your Order

Check your order and personal details are correct before submitting your order.

If you have upgraded your kit or added any addons or extras to your order you will be asked to pay the remaining balance.




Please note: You will be required to enter your post/zip code with your card details. Please ensure that you use the same post/zip code registered to your card - which may not be the same as the delivery address. Having payment issues? Please refer to this article.
